Hydraulic Pumps
Appiah Hydraulic is proud of its heritage, with millions of products installed around the world and product lines which are more than twenty eight years old.
In Hydraulic Pumps section, we manufacture of ; Bent Axis Hydraulic Pumps, Axial Piston Pumps, Straight Piston Pumps, High Pressure Piston Pumps, Hydraulic Gear Pumps, Dual Output Piston Pumps, Twin Flow Piston Pumps, Tandem Hydraulic Pumps, Industrial and Mobile Pumps, Radial Piston Pumps with Special covered Piston Pumps with Gear Pumps. Mainly we produce Fixed Displacement Hydraulic Pumps, and develop Variable displacement for the near future. All Details below about Hydraulic Pumps

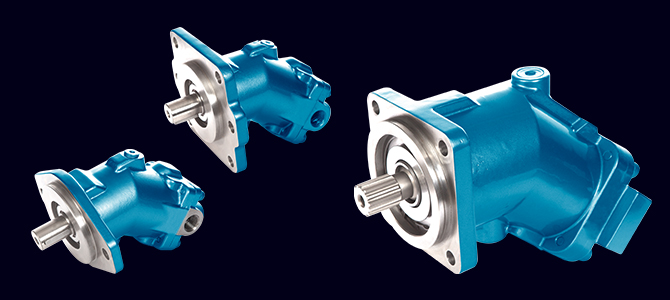

Bent Axis Hydraulic Pumps
DIN-ISO-SAE Mounting Flange,
From 5cc to 180cc all size of Bent Axis Pumps.
5cc to 130cc, Interchangeable with other International Brands.
Advantages; Compact Design, Economical Conception, High Rotating Speeds, High Output Pressure, Reduced Noise Level, Smaller Installation Dimensions, One Piece Pistons with Piston Rings, Special Suction Fittings & Accesories, Simple Change of Direction of Rotation..
Versions / Sizes,
5cc, 12cc, 18cc, 25cc, 32cc, 40cc, 50cc, 56cc, 63cc, 80cc, 108 cc and 130cc.
P Pumps (DIN)
DIN ISO 14 NF, 8x32x36, 4 Bolt, Bent Axis Pumps.
Keyed and Splined Shaft Options
350-400 bar Working Pressure
Versions / Sizes,
5cc 12cc 18cc 25cc 32cc 40cc 50cc 56cc 63cc 80cc 108cc 130cc.
New frame sizes to meet market requirements.
Optional by-pass valve.
For use in mobile & industrial and stationary applications areas.
The pump drive shaft bearings are designed to give the service life expected in these areas of operation.

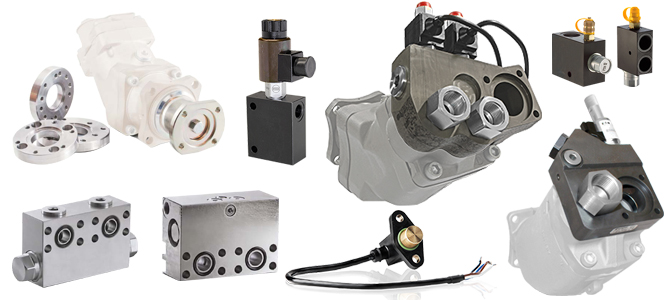

BY-PASS VALVE for Bent Axis Pumps
For P Pump applications; where the pump is driven by a continuous running PTO (PTO which cannot be disengaged),
Appiah HYDRAULIC offers a by-pass valve which is fitted onto the back of the pump.
From 5cc to 180cc all size of by-pass valve available for P Serie of Bent Axis Pumps.
This solution allows the continuous running of the pump:
- without creating problems of fluid overheating;
- without affecting pump service life;
- with no modifications necessary to the hydraulic circuit of the equipment.
Available 12V and 24V Versions / Sizes,
5cc, 12cc, 18cc, 25cc, 32cc, 40cc, 50cc, 56cc, 63cc, 80cc, 108 cc, 130cc, 160cc and 180cc.

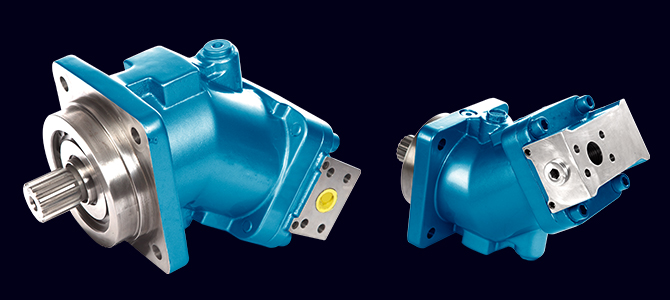

P Pumps (ISO)
ISO 3019-2, 4 Bolt, Bent Axis Pumps.
Keyed and Splined Shaft Options
400-450 bar Working Pressure
Versions / Sizes,
5cc 12cc 18cc 25cc 32cc 40cc 50cc 56cc 63cc 80cc 108cc 130cc.
New frame sizes to meet market requirements.
Optional by-pass valve.
For use in mobile & industrial and stationary applications areas.
The pump drive shaft bearings are designed to give the service life expected in these areas of operation.
P Pumps (SAE)
SAE Mounting Flange 2 Bolt, 4 Bolt, and 6 Bolt Bent Axis Pumps.
Keyed and Splined Shaft Options
400-450 bar Working Pressure
SAE A, SAE B, SAE C, SAE D
Versions / Sizes,
5cc 12cc 18cc 25cc 32cc 40cc 50cc 56cc 63cc 80cc 108cc 130cc.
New frame sizes to meet market requirements.
Optional by-pass valve.
For use in mobile & industrial and stationary applications areas.
The pump drive shaft bearings are designed to give the service life expected in these areas of operation.
PA Axial Piston Pumps
DIN ISO 14 NF, 8x32x36, 4 Bolt, Axial Piston Pumps.
Versions / Sizes,
25cc 35cc 45cc 55cc 65cc 80cc 90cc 110cc.
6 Spline or 8 Spline Shaft design.
350-400 bar Working Pressure.
For use in mobile & industrial and stationary applications areas.
The pump drive shaft bearings are designed to give the service life expected in these areas of operation.
PH High Pressure Piston Pumps
SAE Design, Keyed Shaft, 2 Bolt, High Pressure Piston Pumps.
600-700 bar High Pressure,
2cc, 4cc, 6cc, 12cc, 15cc, 22cc, 35cc, 45cc.
For use in mobile & industrial and stationary applications areas.
The pump drive shaft bearings are designed to give the service life expected in these areas of operation.
ST Straight Piston Pumps
Fixed displacement axial piston pumps and motors swash plate design for open circuit applications.
27cc to 48cc all Size available
The design is extremely compact and it can integrate many functions.
An electrically controlled valve can be fitted on the pump and an electronic board controls the flow and the speed of the powered motor.
Possibility to have on the pressure line a three-position electrically controlled valve with relief valve.
Possibility to mount an auxiliary gear pump with common suction
Internal drain

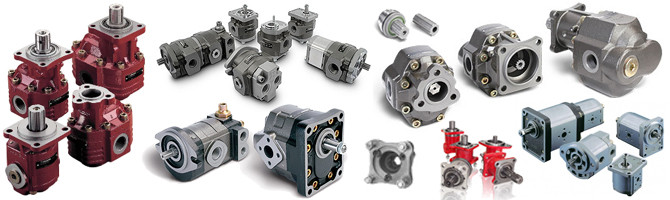

G Gear Pumps
New 2016 version Hydraulic Gear Pumps UNI,ISO,SAE,DIN All Mounting Flange available.
Versions / Sizes,
5cc 12cc 18cc 25cc 35cc 45cc 55cc 65cc 80cc 90cc 110cc 130cc.
Gear pumps made of cast iron in two pieces.
Ideal for truck application.
Max. peak pressure up to 4713 psi (325 bar).
Max. speed up to 3000 min-1.

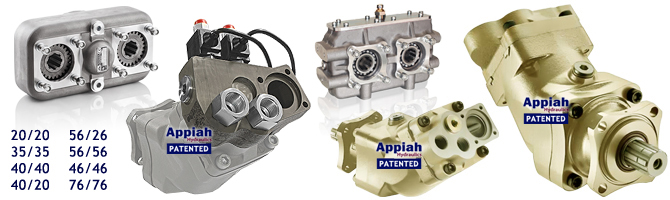

DD Dual Output Piston Pumps
The range of fixed displacement dual flow pumps D and DD comprises 10 different sizes from 20/20 cm3 up to 76/76 cm3.
Versions / Sizes,
56/26 , 76/76 , 20/20 28/28 40/20 35/35 56/28 46/46 53/53 64/32.
The DD dual flow pumps are of bent-axis design, the DD pumps are of inline design with swash plate.
Optional by-pass valve.
Appiah dual flow pump is ideal for vehicles which require two different flows.

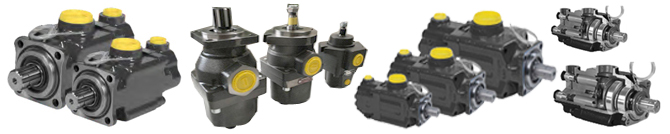

TW Twin Flow Piston Pumps
Of unique design, the TW pumps offer a robust solution with long service life for high pressure requirements in truck hydraulics.
Versions / Sizes,
75/40 , 32/32, 40/40, 55-55, 67-67, 55-33, 67-40.
Combining automatic dual direction of rotation, high output pressure, (500 bar peak pressure), and insensitivity to slightly degraded fluids, these pumps are particularly well suited to the harshest environments.
Twin flow from 2x32 cc/rpm to 2x 75cc/rpm.
Two different flows: 75-40 cc/rpm & 67-40 cc/rpm.
PAD twin-flow in 2 x 5 pistons: dual direction of rotation, high output pressure, 350 bar continuous pressure and 500 bar peak pressure, simple and robust design.
TD Tandem Hydraulic Pumps
Any size of Gear Pumps and Piston Pumps Tandem or Double installed versions..
Versions / Sizes,
5cc 12cc 18cc 25cc 32cc 40cc 50cc 56cc 63cc 80cc 108cc 130cc.
TD Tandem pumps consits of two single pumps mounted on a common drive shaft. Hydraulically, the two pumps operate independently of one another but they share a common suction port in the pump´s centre section. The larger pump of the combination is situated at the shaft end (the drive side). With equal frame sizes, the pump with the larger displacement is situated at the drive side.

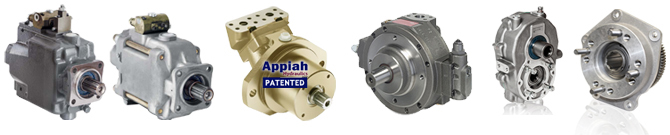

Industrial and Mobile Pumps
Any size of Industrial and Mobile Pumps used in both sections..
40 degree bent axis design giving high power, small overall dimensions, optimum efficiency and economic design.
Flange and shaft designed for direct mounting on truck gearbox PTO's. The fixed displacement bent axis pumps generates a hydraulic fluid flow.
It is designed for use in all high power needs, industrial and mobile and all stationary hydraulic applications. The pump is a fixed pump with rotary group in bent-axis design open circuits.
Flow is proportional to drive speed and displacement.
For axial piston units with bent-axis design, the Pistons are arranged diagonally with respect to the drive shaft. The pumps covers the whole displacement range 5 to 130 cm3/rev.
The pump has been developed with modern styling and design to satisfy market demand as to designed new generation plate and pistons with give high flow performance, high pressures with high efficiency and very small dimensions.
The pump is available both to DIN, ISO and SAE world standards and can be mounted either directly at the gear box or any applications.
If necessary it can also be augmented with a By Pass Valve. Other brand bent axis pump compatible and interchangeable with Our bent axis pumps.
Refer to the data sheet and order confirmation for the technical data,operating conditions and operating limits of the bent axis piston pumps.
V Variable Displ. Hydraulic Pumps
Axial Piston Variable Pump Open Circuit.
Versions / Sizes,
5cc 12cc 18cc 25cc 32cc 40cc 50cc 56cc 63cc 80cc 108cc 130cc.
Nominal pressure: 3625 psi (250 bar)
Peak pressure: 4000 psi (280 bar)
Significant fuel savings: up to 15% compared with fixed system
Optimized efficiency: at the same power level with less fuel consumption
Compact design: due to integrated controller
Increased life time: compared to similar gear pump sizes

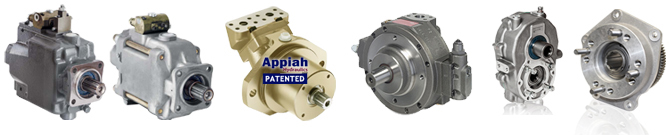

R Radial Piston Pumps
Fixed Displacement Radial Piston Pumps
Versions / Sizes,
Maximum displacement volume 0.40 to 20.00 cm³.
Maximum operating pressure 700 bar
R Radial Hydraulic Pumps are valve-controlled, self-priming radial piston pumps with fixed displacement for very high pressures of up to 700 bar.
High Efficiency
Maximum Pressure
Small Size and Design
Optimised High Performance

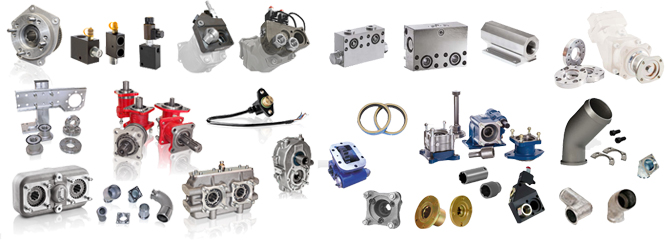

Inlet Fittings - Spare Parts for Pumps
Any size of Gear Pumps and Piston Pumps available Inlet Fittings with Accessories..
Advantages,
Appiah Hydraulics offering economy costs of Inlet Fittings, Spare Parts and Accessories possible in our manufacture plants.
We supporting wide range of solutions via on time delivery. O-Rings, Seals, Piston and Ring Kits, Barrel, Shaft, Cover, Body, Bearings, Fittings, Screw and Plugs supporting, Education and Videos and more advantages already. For more details, please e-mail to us or fulfill our Contact Form in Contact Page...
